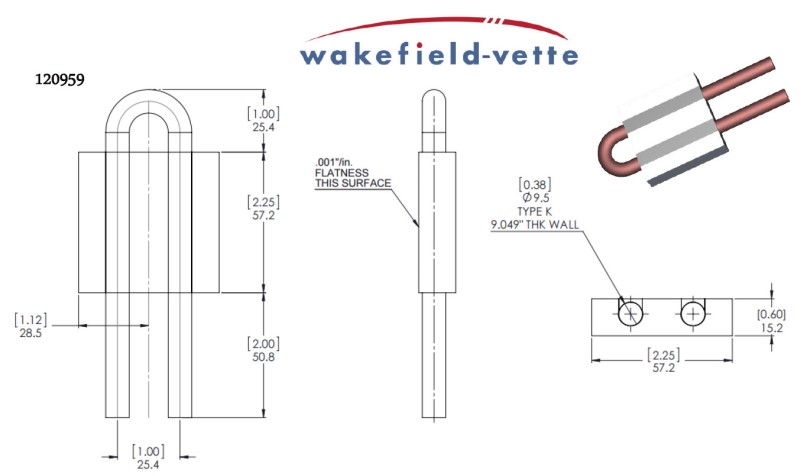

120959 Full Buried Tube Liquid Cold Plate

Wakefield- Vette’s fully buried tube liquid cold plates have the ability to cool both sides of the cold plate because of it’s positioning within the base plate.  Another key feature of the fully buried tube is that it is not exposed to the outside environment. Some engineers prefer the epoxy layer above the tube to protect the tube from leakage.

Key Specifications:

Plate Surface:   2.25" x 2.25"

Economical extruded base with continuous copper tube

Continuous copper tube reduces leakage

Copper Tube is not exposed to external environment

Tube under high level of conductive epoxy

Numerous flow paths for various location of heat sources

Base Plate: Extruded Aluminum

Copper Tube Material: 0.375" OD x 0.049" wall

Thermal Epoxy fill with high thermal conductivity

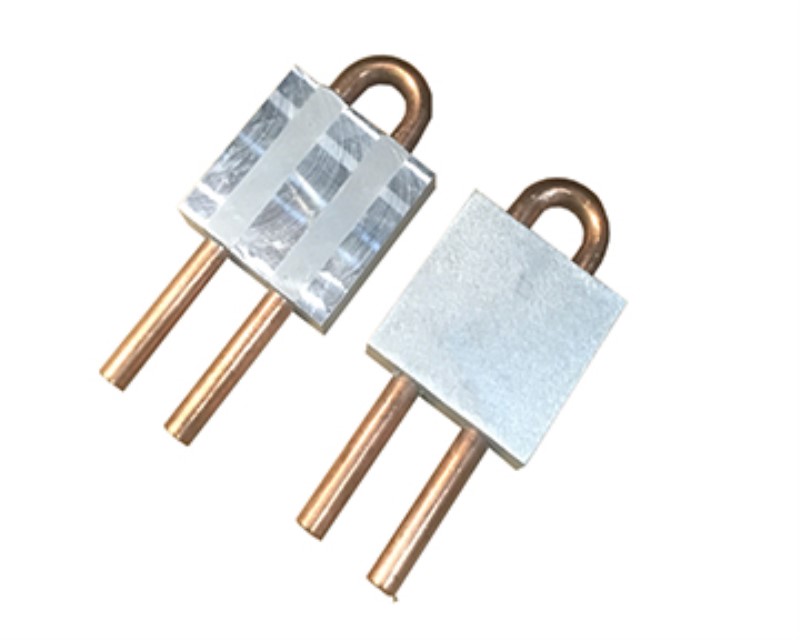

Fully Buried Tube 2 Pass Coldplate
