ATO-32-B225-D10

Features

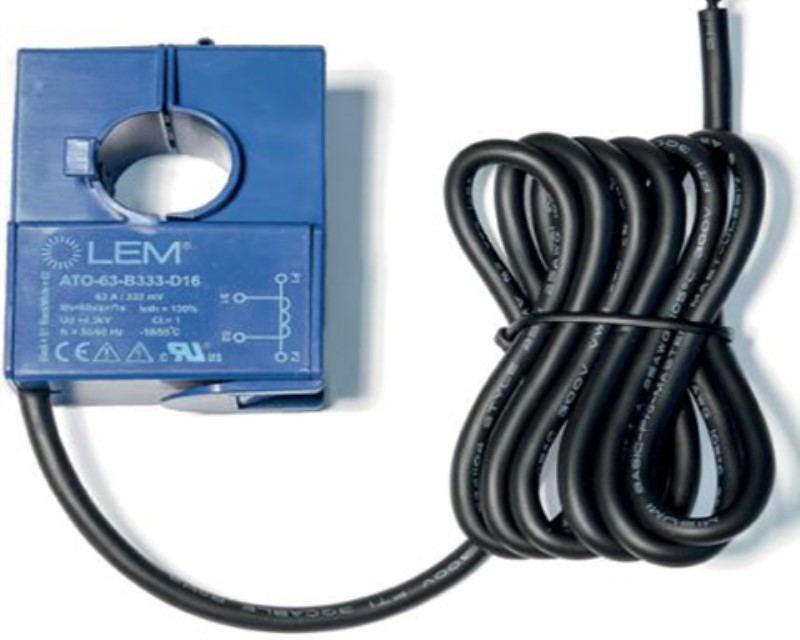

● Split-core current transformer
● Rated primary current: 10 A - 15 A - 16 A - 20 A - 30 A - 32 A - 50 A - 60 A - 63 A - 75 A
● Application up to 600 V CAT III PD2, basic insulation
● Accuracy class 1 (IEC 61869-2)
● Voltage output 225 mV at IPr
● ⌀ 16 mm sensing aperture
● 1 m output cable
● Ambient temperature −10 °C … +55 °C
● Very low cost solution
● Slot for attaching the C.T. on the primary with plastic tie
● DIN rail adapter (optional).
Advantages
● No interruption of electricity during installation on insulated conductors
● Quick, non-intrusive and easy setup
● Provide a calibrate output.
