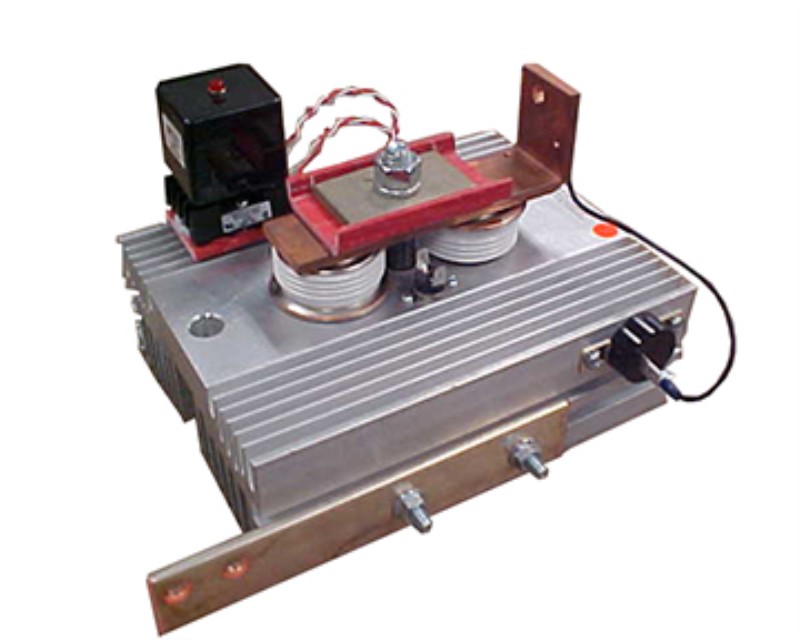

DAHE180-22M

Amps:
125KVA Welding Transformer Size

1540 Welding Rating Amps RMA at 5% Duty Cycle

300 Welding Rating Amps RMA at 50% Duty Cycle

7500 SGL. Cycle Surge Current (ITSM)

2200 SCR Voltage Rating (PIV)(VRRM)

Ignitron Size:
A/B

Cooling:
Convection cooled, at 45°C maximum ambient temperature.

Welding Ratings:
Suggested transformer KVA is based on the maximum secondary voltage at 5% duty cycle, 460 Volt incoming A.C. line or higher; typically, spotwelding applications.

Thermostat:
All switches are supplied with an encapsulated thermostat sensor, 50°C open on rise, and is isolated to base to 2000 Volts. Thermostat leads are 12 inches long.

MOV:
Included.

Consult factory for seam, projection, or frequency converter welding requirements.
