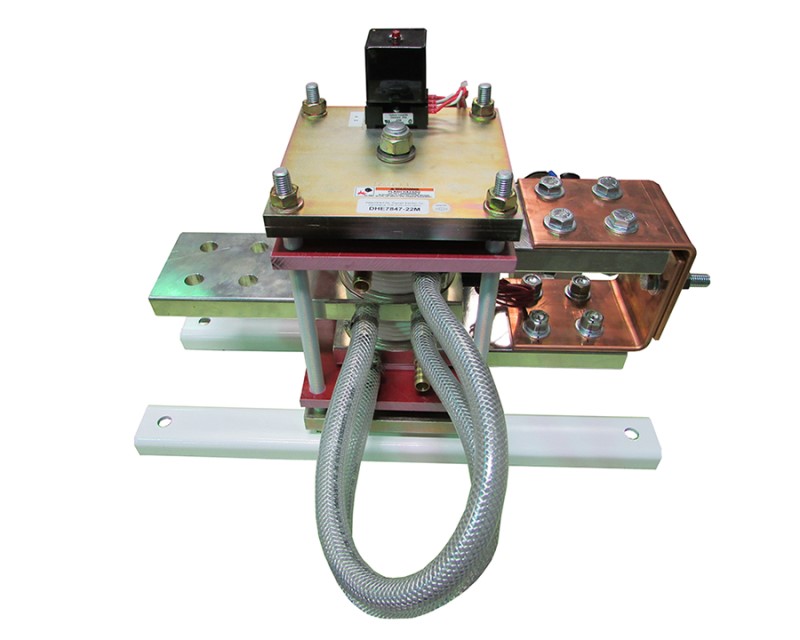

DHE7847-22M

Amps:

1500KVA Welding Transformer Size

6526 Amps RMS at 50% Duty Cycle

40000 SGL. Cycle Surge Current (ITSM)

2200 SCR Voltage Rating (PIV)(VRRM)

Ignitron Size:
SUPER E

Water Requirements:
Amps RMS is achieved with a cooling flow rate of 1.2 gallons (4.5 liters) per minute at 40°C water temperature.

Water Connections:
Fits 3/8 inch hoses.

Cooling Block:
Copper-Nickel Plated.

Welding Ratings:
Suggested transformer KVA is based on the maximum secondary voltage at 50% duty cycle, 460 Volt incoming A.C. line or higher; typically, spotwelding applications.

Thermostat:
All switches are supplied with an encapsulated thermostat sensor, 50°C open on rise, and is isolated to base to 2000 Volts. Thermostat leads are 12 inches long.

MOV:
Included.

Consult factory for seam, projection, or frequency converter welding requirements.
