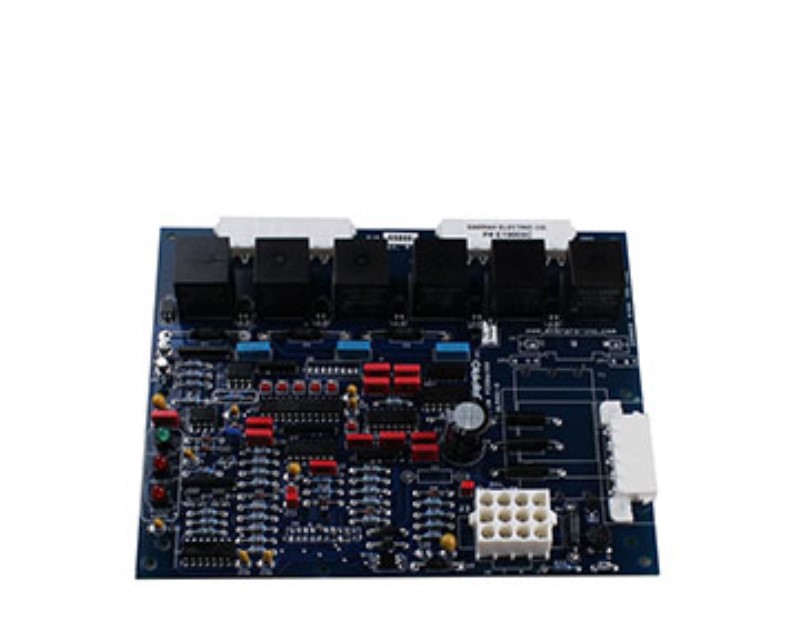

E19005C

Provides economical and reliable phase-angle control of SCR AC controllers and DC converters operated from three-phase mains. The board features six isolated gate drives, independently configurable soft start/soft stop control inputs, and an analog delay angle command input configurable for a variety of common voltage or current ranges. A variety of current and voltage regulator boards are available in addition to auxiliary firing boards for remote or parallel SCR arrangements.

Industry Standard ASIC-Based Design

Fully Connectorized

Independently Configurable Soft-Start and Soft-Stop

Isolated Gate Drive Circuitry

Phase Loss and Power-On Reset Protection
