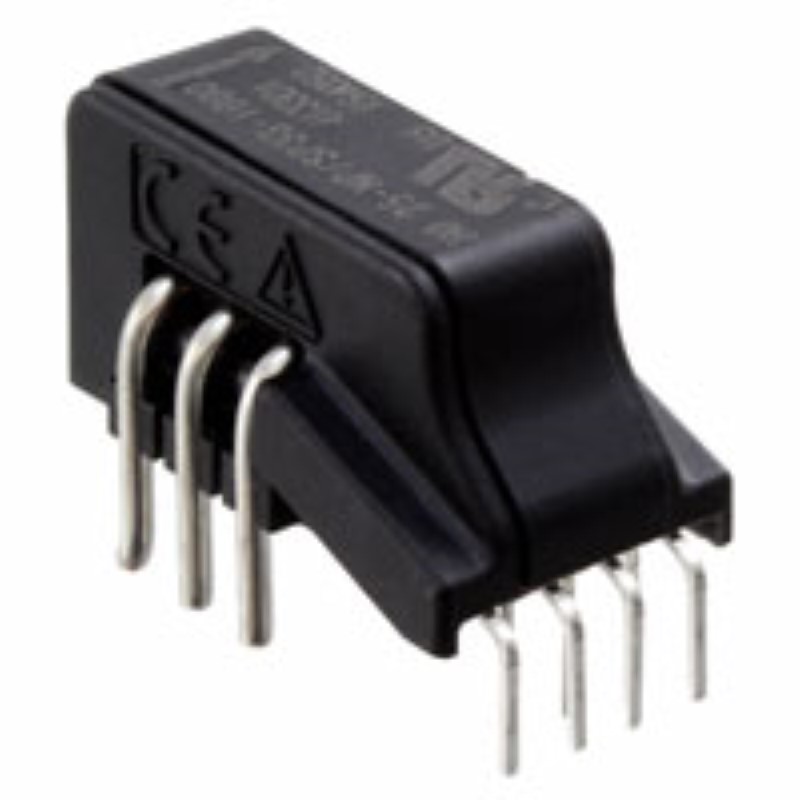

HO 15-NSM-0000

Features
Hall effect measuring principle
Multirange current transducer through PCB pattern lay-out
Galvanic separation between primary and secondary circuit
Insulated test voltage 4300V
Low power consumption
Extremely low profile 12 mm
Single power supply +5V
Fixed offset & sensitivity
Over-current detect 2.63 x Ipn (peak value)
Memory check
Advantages
Small size and space saving
Only one design for wide primary current range
High immunity to external interference
8 mm creepage / clearance
High insulation capability
Fast response
Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
The solar inverter on DC side of the inverter (MPPT)
Combiner box
