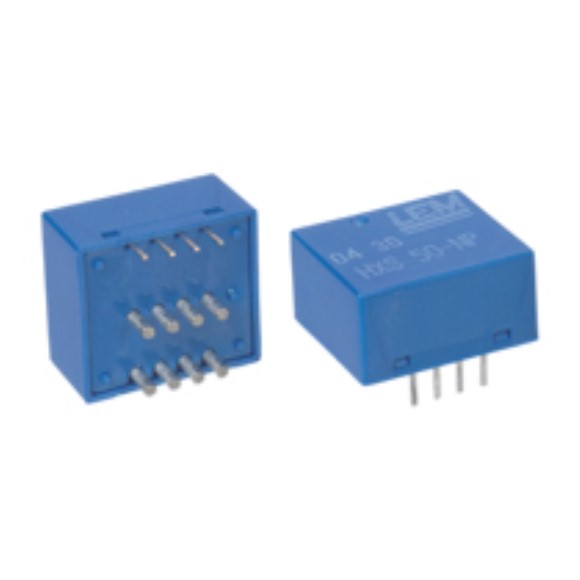

HXS 50-NP

Features
Hall effect measuring principle
Multirange current transducer through PCB pattern lay-out
Galvanic separation between primary and secondary circuit
Insulation test voltage 2500 V
Low power consumption
Extremely low profile, 10 mm
Single power supply +5 V
Fixed offset & gain
Advantages
Small size and space saving
Only one design for wide current ratings range
High immunity to external interference
Internal & external reference
Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
