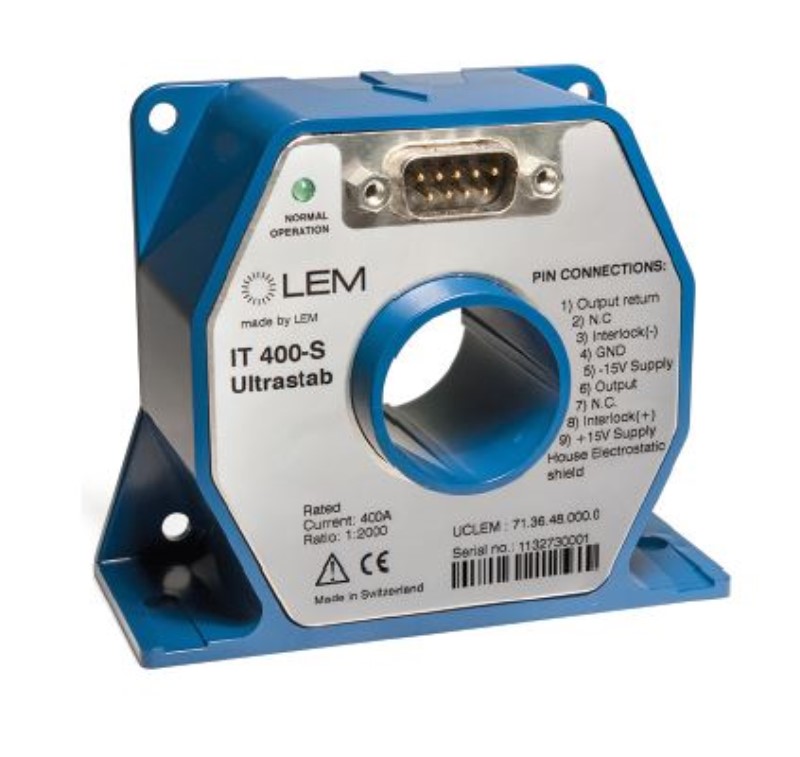

IT 400-S ULTRASTAB

Features
Closed loop (compensated) current transducer using an extremely accurate zero flux detector
Electrostatic shield between primary and secondary circuit
9-pin D-sub male secondary connector
Optically insulated output (photocoupler type) indicates transducer state
LED indicator confirms normal operation
Advantages
Very high accuracy
Excellent linearity
Extremely low temperature drift
Wide frequency bandwidth
High immunity to external fields
No insertion losses
Low noise on output signal
Low noise feedback to primary conductor
Applications
Feed back element in high performance gradient amplifiers for MRI
Feed back element in high precision, high stability power supplies
Calibration unit
Energy measurement
Medical equipment
