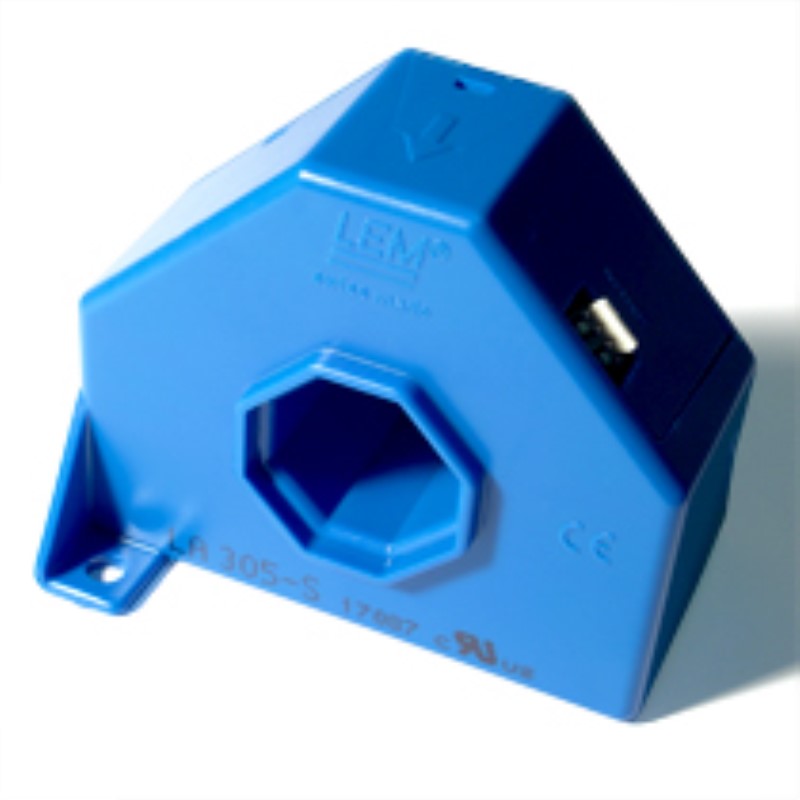

LA 305-S
Current Transducer
For the electronic measurement of currents: DC, AC, pulsed..., with galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).
Features
Closed loop (compensated) current transducer using the Hall effect
Printed circuit board mounting
Insulated plastic case recognized according to UL 94-V0
Advantages
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
AC variable speed drives and servo motor drives
Power supplies for welding applications
