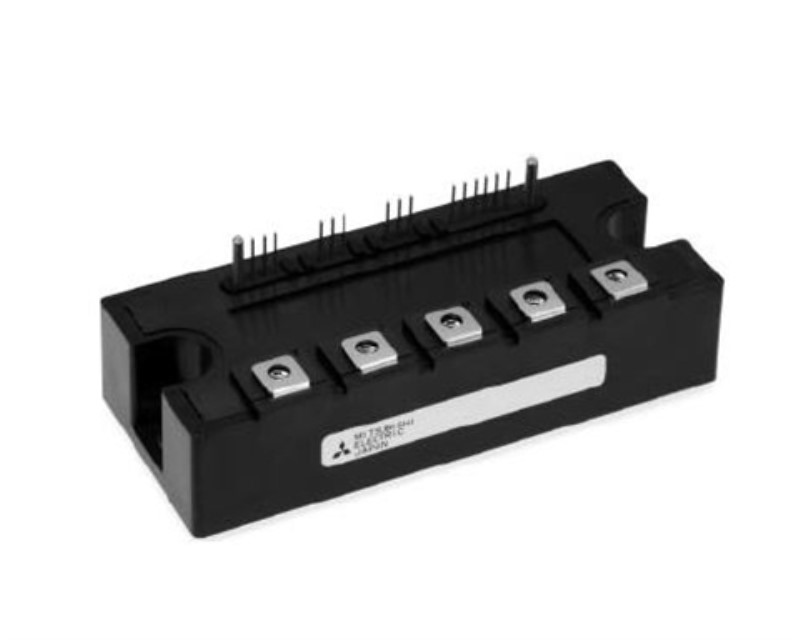

PM75CS1D120

Mitsubishi Electric Intelligent Power Module

FEATURES
Inverter + Drive & Protection IC
• 3 phase 75A/1200V CSTBTTM
(The Current sensor and the thermal sensor with a build-in CSTBTTM.)
• Monolithic gate drive & protection logic
• Detection, protection & status indication circuits for, short circuit, over-temperature & under-voltage
Application
General purpose inverter, servo drives and other motor controls
