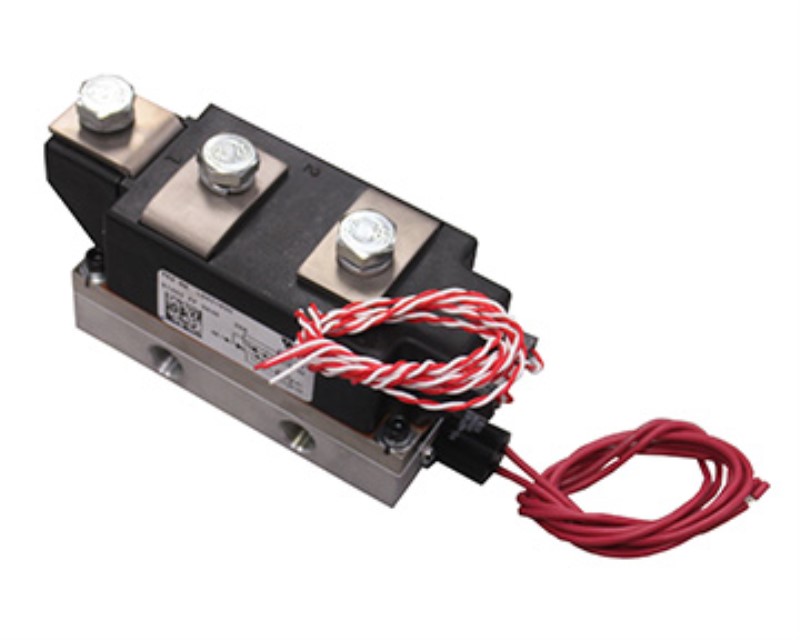

Q20013

Amps:

2797 Amps Welding Rating Amps RMS at 10% Duty Cycle

1522 Amps Welding Rating Amps RMS at 50% Duty Cycle

1097 Amps Welding Rating Amps RMS at 100% Duty Cycle

1800 SCR Voltage Rating (PIV)(VRRM)

Water Connection Location:
Side 2” Centers

Package Design:
MPO4

Water Requirements:
Amps RMS is achieved with a cooling flow rate of 1.2 gallons (4.5 liters) per minute at 40°C water temperature.

Water Connections:
1/4-18 NPT tapped holes.

Thermostat:
All contactors are supplied with an encapsulated thermostat sensor, 50°C open on rise, and is isolated to base to 2000 Volts. Thermostat leads are 24 inches long.

Options Include:
R/C snubber, MOV’s, and bus bars
