Y20120Z1B1

Amps: 12

Volts: 1200

This item is currently out of stock, to contact us for lead times please reach out to us directly at (216) 631-0912 or email us.

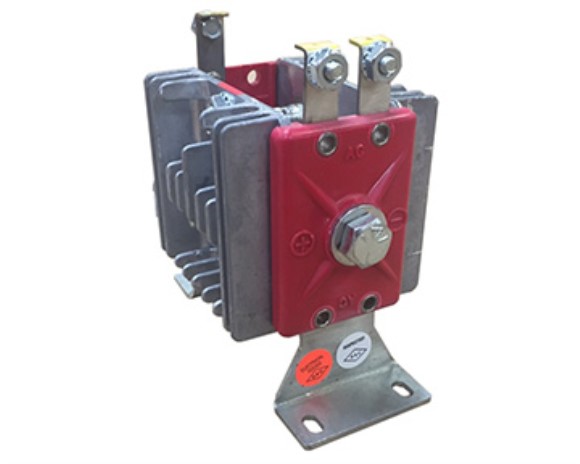

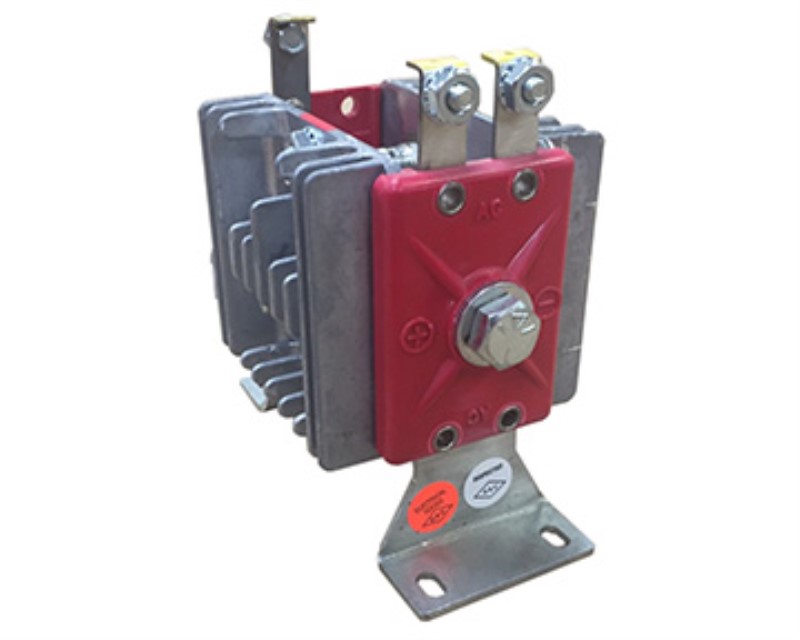

Complete bridge with heat sinks. No assembly required.

Type of Heat Sink: 2-1/2” x 2-3/4”

Type of Diode: 20

Peak Reverse Voltage: 1200

Type of Circuit: 3 Phase Bridge

No. of Diodes in Series: 1

Rated Continuous DC Amperes at 400°C Maximum Ambient Temperature
Natural Convection: 12A
Forced Air at 800 LFM: 36A

Type of Mounting: Brackets

No. of Diodes in Parallel: 1

Blocking voltages to 1600V

Available in single or three phase bridge assemblies.

Available with bracket or bolt mounting

Can be supplied with either DO-4 or DO-5 rectifiers

Option: DC Surge Suppressor. Contact Darrah Electric for details.
