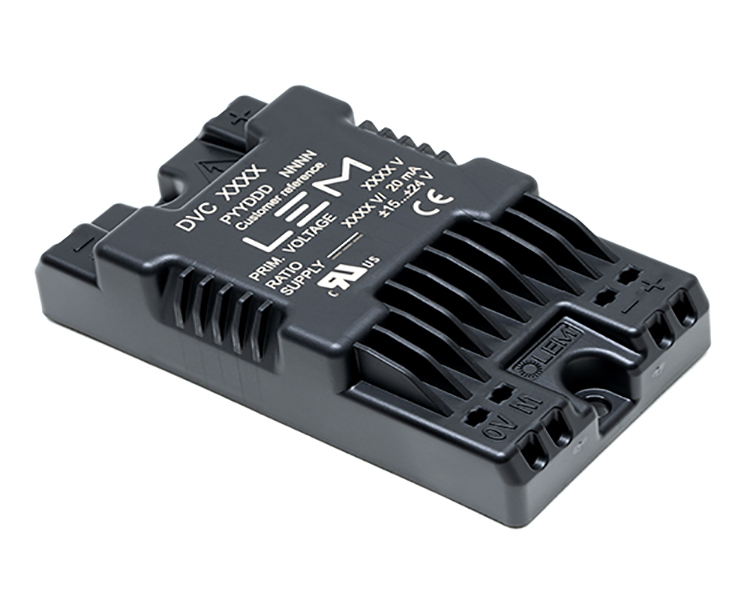

MAIN CHARACTERISTICS:
• Isolated measurement of nominal AC & DC voltage of 1000 V
• Compact: 131.6 cm3 total volume
• Saving in terms of space: 29 x 51 x 89 mm
• Panel mounting
• Light: 57 g
• Robust
• Isolation amplifier technology
• High level of overall accuracy over temperature range: 1.7 %
• Fast response time: 12 to 17 us at 90%
FEATURES:
• 4.2kV as insulation test voltage
• Power supply +/- 15 to 24 Volt or Unipolar +15 to +24 Volt (DVC -UI series)
• Operating temperature range from -40 to +85°C
• Bandwidth (-3 dB): 35 kHz
• Instantaneous +/- 30 mA current output at +/- 1500 Volt peak: DVC 1000 model
• Instantaneous +/- 10 Volt voltage output at +/- 1500 Volt peak: DVC 1000-B model
• Unipolar instantaneous 4-20 mA current output at 0…+1000 Volt DC: DVC 1000-UI model (Unipolar DC Voltage measurement)
• Rail DIN mounting adaptor as an option
• Meets latest industrial standards as well as IRIS requirements for rail traction applications (EN 45545)
• Comply with all relevant fire and smoke requirements mandatory in railway applications
• Auxiliary converters, Main converters for Light Rail Vehicles, DC substations for Light Rail Vehicles (Voltage regulation), DC Power supply monitoring (24V/110V), EV Charger, Battery storage.
| Model | Measurement | Nominal value | Accuracy | Supply voltage | Second. Nominal Signal |
|
DVC 1000 DVC SERIES |
VOLTAGE | 1000 V | 1.7% | External DC Bipolar 15 to 24V |
Instantaneus Current 20 mA |
|
DVC 1000-B DVC-B Series |
VOLTAGE | 1000 V | 1.7% | External DC Bipolar 15 to 24V |
Instantaneus Voltage 6.66V |
|
DVC 1000-UI DVC-UI Series |
VOLTAGE | 1000 V | 1.7% | External DC Unipolar 15 to 24V |
Instantaneus Unipolar Current 4-20mA |
|
DVC 1000-P DVC-P Series |
VOLTAGE | 1000 V | 1.5% | External DC Unipolar 15 to 24V |
Instantaneus Unipolar Voltage 0-5V |
