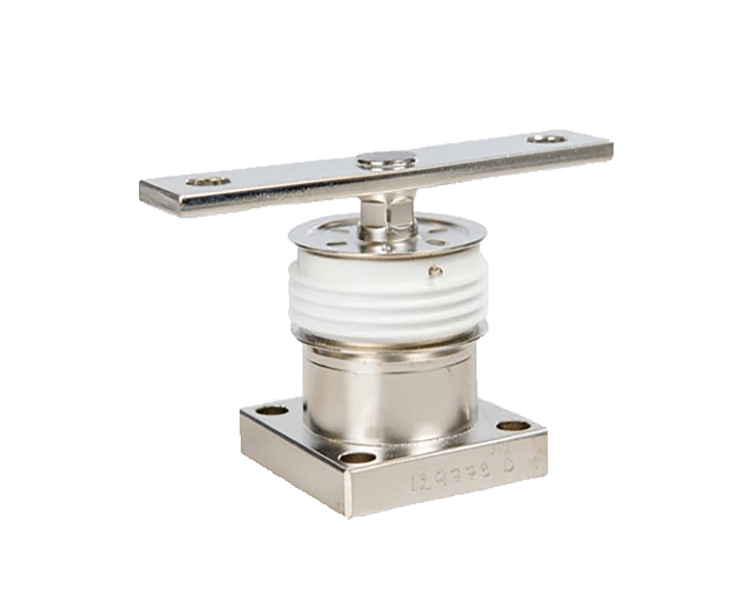

Dynex Flat Base Rectifier Diodes range from 3000V to 6000V at current ratings of 412A to 860A.
| Part Number | VRRM (V) | IF (AV) at TC= 100° (A) | IFSM at Tvj VR=0 (kA | I 2 t at Tvj VR = 0 (MA2 s | Rth(j-c) (°C/W) | IFM (A) | VFM@ IFM & Tc= 25ºC (V) | Outline Type Code | Clamping Force (kN) min - max |
| S1104SXU30 | 3000 | 860 | 16 | 1.28 | 0.65 | 1800 | 1.225 | S | 0-22 |
| S1107SXU40 | 4000 | 570 | 12 | 0.72 | 0.65 | 1800 | 1.55 | S | 0-22 |
| S1109SXU50 | 5000 | 470 | 9.2 | 0.441 | 0.65 | 1800 | 2.1 | S | 0-22 |
| S1112SXU60 | 6000 | 412 | 8.5 | 0.361 | 0.65 | 1800 | 2.6 | S | 0-22 |
FEATURES
- Low losses for high efficiency
- Hermetically sealed for long operational life
- Easily mounted down with 4 M8 bolts on 46mm centres
- Available with flying lead, full and half bar connections on request
- Available anode to base and cathode to base
- Selections available for parallel operation
