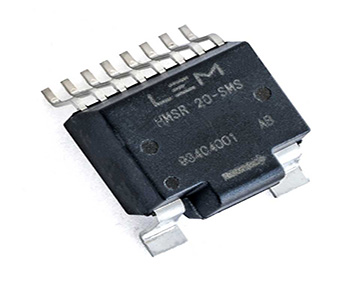

HMSR SERIES
MAIN CHARACTERISTICS:
- IC SO16 packaging for SMD automatic assembly
- Only 6 mm height
- Non-contact AC&DC current measurement for 6, 8, 10, 15, 20 or 30 A nominal
- 0.5% typical accuracy into the operational temperature range
- 2 µs response time
- Cost effective
- 8 mm creepage and clearance distances + CTI 600
- Reinforced insulation according to the IEC 60950-1 standard (4950 VRMS isolation test voltage)
- High performance gain and offset thermal drifts
- Operating temperature range: -40°C to +125°C
FEATURES:
- Unique primary conductor included
- Overload current bursts withstand of up to 20 kA (8-20 us)
- Excellent immunity to external fields
- DC to 270 kHz
- +5V power supply
- Analog voltage output 800 mV @ IPN
- Double overcurrent detection outputs
- Photovoltaic, white goods, windows shutters, air-conditioning, high switching frequencies drives application
