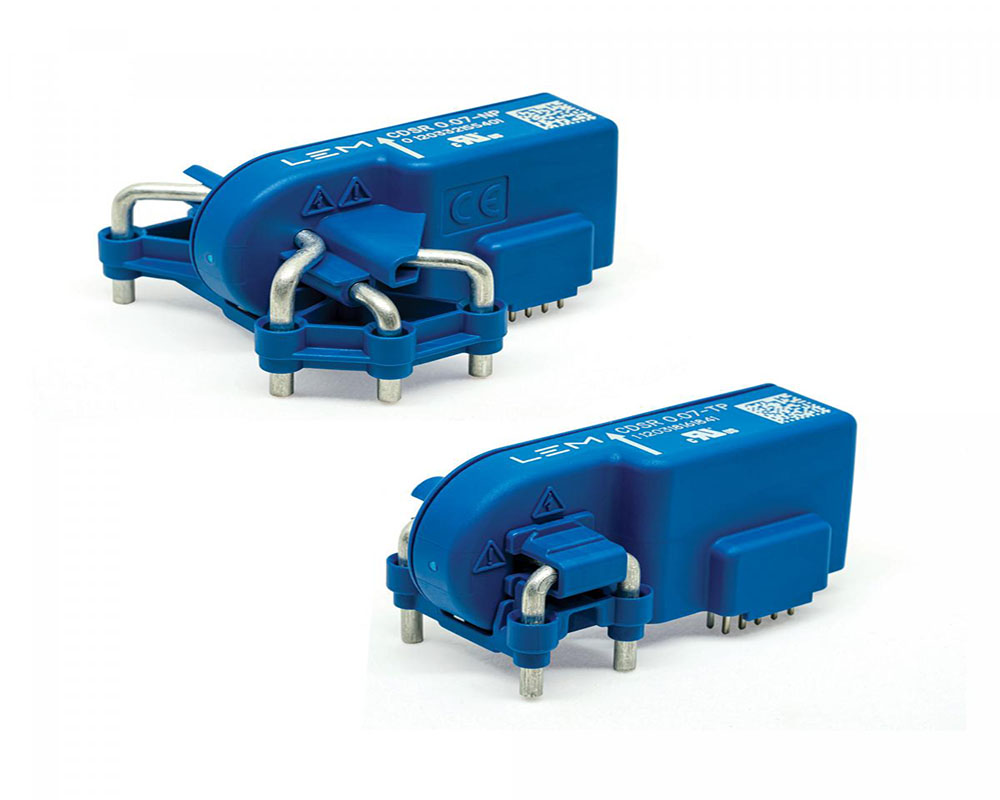

CDSR 0.07-TP / -NP
MAIN CHARACTERISTICS:
• RCD type B measuring levels
• Fluxgate Open loop current transducer
• Voltage and SPI digital output
• Single supply voltage 3.3 V
• PCB mounting
• Very low error at small currents measurement
• High overload capability
• High insulation capability
• Test winding.
FEATURES:
• Primary current 32 A RMS
• 150 ± mA AC and DC measuring range
• ±0.5 mA accuracy at 5 mA AC and DC
• Dual output with digital com. (SPI) and Analog
• Test winding
• < 50 mA current consumption at 3.3V
• -40°C to 85°C operating temperature
• DC to 2kHz Bandwidth
• 8 mm Creepage and Clearance distances Prim. / Sec.
• PD2 OVC2 (TP) /OVC3 (NP) 300 V UL 840, 4000 m
• Ratio metric and differential output signal
• IEC 62752 / 62955 / 61851-1 / UL 2231-1,2
