LEM’s CDT SERIES

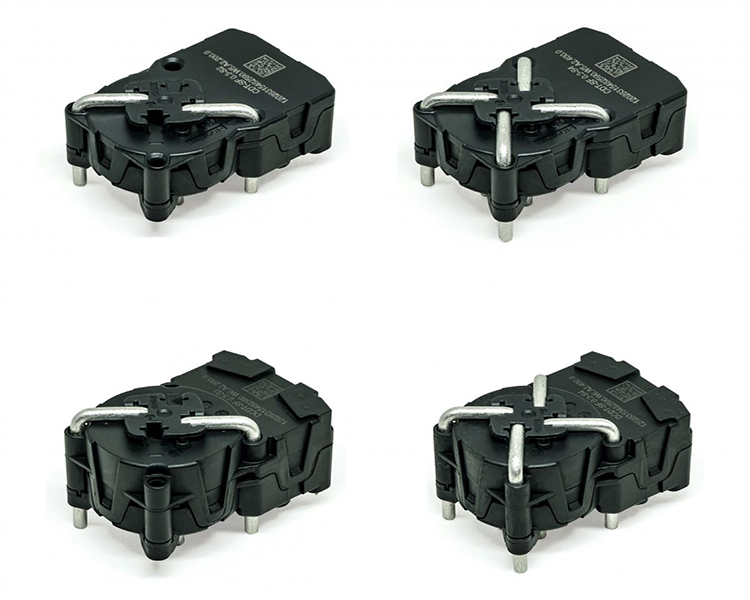

CDT is an automotive grade leakage current sensor family from LEM also called Residual Current Monitoring (RCM) or Residual Current Detection (RCD) class B and B+, dedicated to DC, AC and AC+DC leakage current measurement.
CDT family has been designed to achieve best in class performances, measuring and detecting as low as 5 mA DC or AC leakage. Sensor family is suitable for various AC charging applications:
- AC wall box
- ICCPD (charging cable)
- None isolated On Board Charger (OBC)
- V2G: Vehicle to Grid
- V2L: Vehicle to Load
The CDT sensor family give you the choice of having single or three-phase versions as well as safety version in the same housing and provide fast digital tripping output when leakage current is detected.
MAIN CHARACTERISTICS:
- Fluxgate Open loop current transducers
- RCD Class B (CDT) and B+ (DCDT)
- Single or three-phase versions
- Supply voltage 5 V
- SPI output
- Digital tripping output
- Very high accuracy ±0.5 mA
- Very Low Thermal Offset drift
- Tripping signal for Fast reaction time
- Reinforced galvanic insulation
- 40A RMS per primary conductors
- +/-300 mA leakage current measurement range
- Test winding
- Automotive qualified -40 to +105 °C
- Safety ISO26262 qualified: ASIL B ready (SF version)
FEATURES:
- 4 primary conductors compatible with three-phase and single-phase On-Board Chargers
- Maximum RMS primary current per primary conductor of 40 A RMS
- Unipolar +5 V DC power supply
- Primary current measurement range: ±300 mA DC
- Frequency bandwidth up to 2 kHz (CDT version), and up to 100kHz (DCDT version)
- Operating temperature range: −40 °C < T < +105 °C
- Test winding
- SPI and digital tripping outputs
- Compact design for PCB mounting
- IEC 62752 / UL 2231 / VDE 0664-400 (up to 100 kHz)

Product Standard Max primary current (ARMS) Leakage Measuring Range (ADC) Primary Conductors Bandwidth (Hz) Tripping signal (leakage threshold)
CDT(SF) IEC62752,
UL2231,
(ISO26262)
40/80 ±300 mA DC up to 4 DC - 2 kHz Adjustable/ Factory set
DCDT(SF) IEC62752,
UL2231,
VDE 0664-400,
(ISO26262)
40/80 ±300 mA DC up to 4

DC-2kHz

47Hz-100kHz

DC-2kHz

47Hz-100kHz
