Press-pack IGBT and diode modules

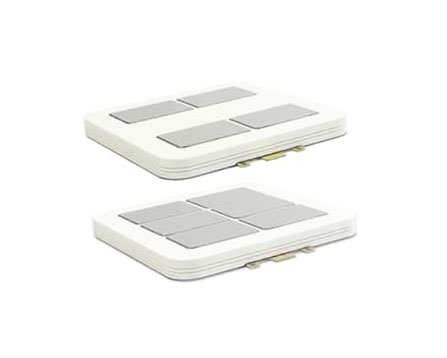

StakPak is a family of high power insulated gate bipolar transistor (IGBT) press-packs and diodes in an advanced modular housing that guarantees uniform chip pressure in multiple-device stacks.
Although the most common package for IGBTs is the isolated module, for applications requiring series connection, press-packs are preferred because of the ease with which they can be connected electrically and mechanically in series and because of their inherent ability to conduct in the shorted state – an essential feature where redundancy is required. Since IGBTs feature multiple parallel chips, there is a challenge - with conventional press-packs - in assuring uniform pressure on all chips. ABB has solved this problem with a patented spring technology.
The StakPak, optimized for series connection, features a modular concept based on sub-modules fitted in a fiberglass reinforced frame, which allows a flexible realization of a range of products for different current ratings and IGBT/diode ratios.
Click on the part numbers for data sheets.
| Part Number | VCES (V) | IC (A) | VCESAT (V) typ.125 °C | VF (V) typ.125 °C | IGBT-to-diode ratio | Housing |
| 5SNA 1300K450300 | 4500 | 1300 | 3.4 | 2.4 | 1:1 | K |
| 5SNA 2000K450300 | 4500 | 2000 | 3.4 | 2.4 | 1:1 | K |
| 5SNA 2000K451300 | 4500 | 2000 | 3.65 | 3.0 | 2:1 | K |
| 5SNA 2000K452300 | 4500 | 2000 | 3.65 | 3.0 | 2:1 | K |
| 5SNA 3000K452300 | 4500 | 3000 | 3.65 | 3.0 | 2:1 | K |
| 5SMA 3000L450300 NEW | 4500 | 3000 | 3.1 | - | 1:0 | L |
| 5SJA 3000L520300 | 5200 | 3000 | 3.1 | 2.52 | 1:1 (BIGT) | L |
Darrah Electric is a Value Added Reseller of ABB Semiconductors.
We offer full product and application support with extended warranty options.
Click here to see our inventory or contact us for samples, lead times and/or pricing at (216) 631-0912.
