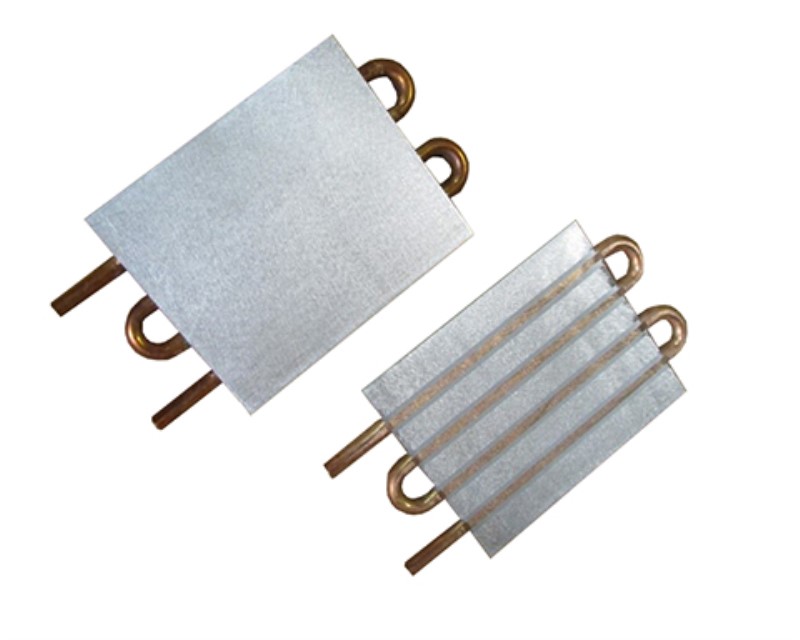

120456 Exposed Tube Liquid Cold Plate

Wakefield- Vette’s exposed tube liquid cold plates ensure minimum thermal resistance between the power device and the cold plate by placing the coolant tube in direct contact with the power device’s base. Direct contact reduces the number of thermal interfaces between device and fluid thus increasing performance for the application.

Key Specifications:

Plate Surface:  6.00" x 5.00"

Economical extruded base with continuous copper tube

Continuous copper tube reduces leakage

Tube and base bonded by highly conductive epoxy

Numerous flow paths for various location of heat sourcesBase Plate: Extruded Aluminum

Copper Tube Material: 0.375" OD x 0.049" wall

Thermal Epoxy fill with high thermal conductivity

Exposed Tube 4 Pass Coldplate
