120961
This item is currently out of stock, to contact us for lead times please reach out to us directly at (216) 631-0912 or email us.

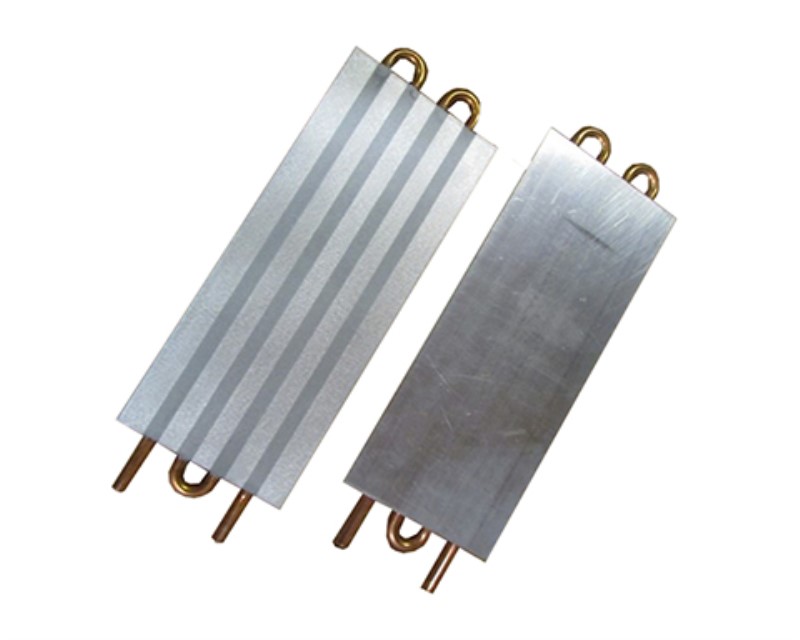

120961 Full Buried Tube Liquid Cold Plate
Wakefield- Vette’s fully buried tube liquid cold plates have the ability to cool both sides of the cold plate because of it’s positioning within the base plate. Another key feature of the fully buried tube is that it is not exposed to the outside environment. Some engineers prefer the epoxy layer above the tube to protect the tube from leakage.
Key Specifications:
Plate Surface: 12.00" x 5.00"
Economical extruded base with continuous copper tube
Continuous copper tube reduces leakage
Copper Tube is not exposed to external environment
Tube under high level of conductive epoxy
Numerous flow paths for various location of heat sources
Base Plate: Extruded Aluminum
Copper Tube Material: 0.375" OD x 0.049" wall
Thermal Epoxy fill with high thermal conductivity
Fully Buried Tube 4 Pass Coldplate
