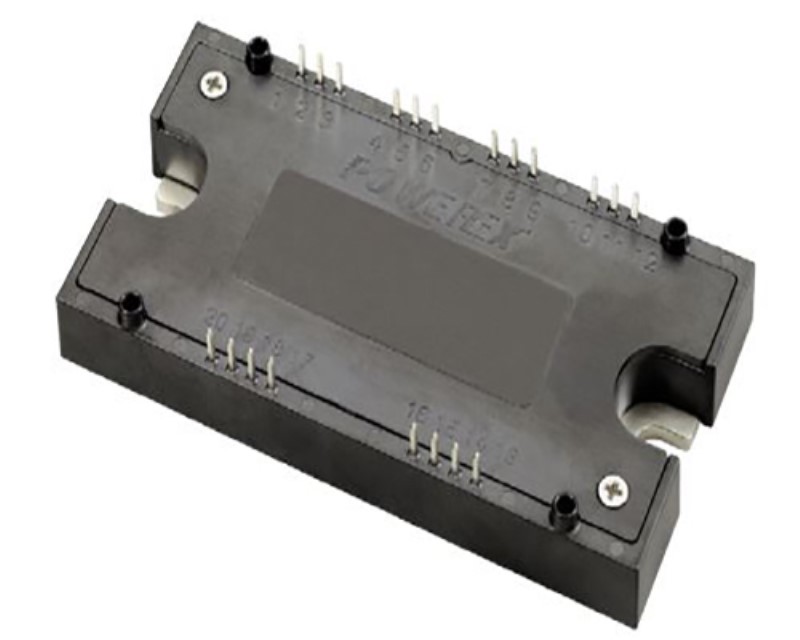

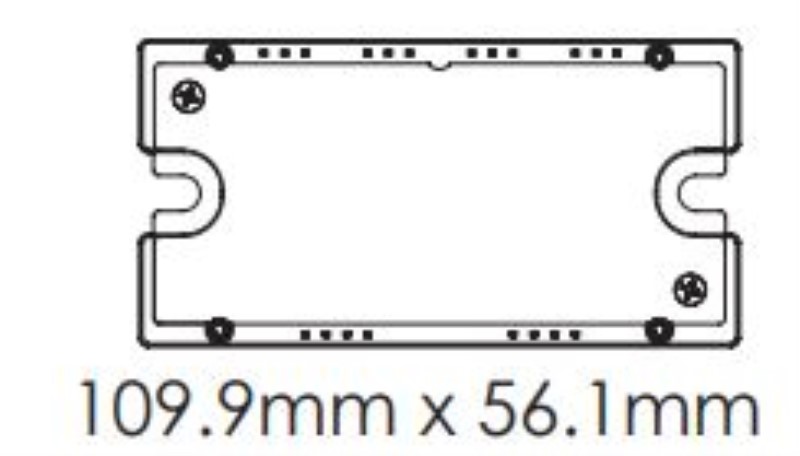

QID1210005

Split Dual Si/SiC
Hybrid IGBT Module
100 Amperes/1200 Volts

Description:
Powerex IGBT Modules are designed for use in high frequency applications; upwards of 30 kHz for hard switching applications and 80 kHz for soft switching applications. Each module consists of two IGBT Transistors with each
transistor having a reverseconnected super-fast recovery free-wheel silicon carbide Schottky diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Features:
- Low ESW(off)
- Aluminum Nitride Isolation
- Discrete Super-Fast Recovery Free-Wheel Silicon Carbide Schottky Diode
- Low Internal Inductance
- 2 Individual Switches per Module
- Isolated Baseplate for Easy Heat Sinking
- Copper Baseplate
- RoHS Compliant

Applications:
- Energy Saving Power Systems such as: Fans; Pumps; Consumer Appliances
- High Frequency Type Power Systems such as: UPS; High Speed Motor Drives; Induction Heating; Welder; Robotics
- High Temperature Power Systems such as: Power Electronics in Electric Vehicle and Aviation Systems
